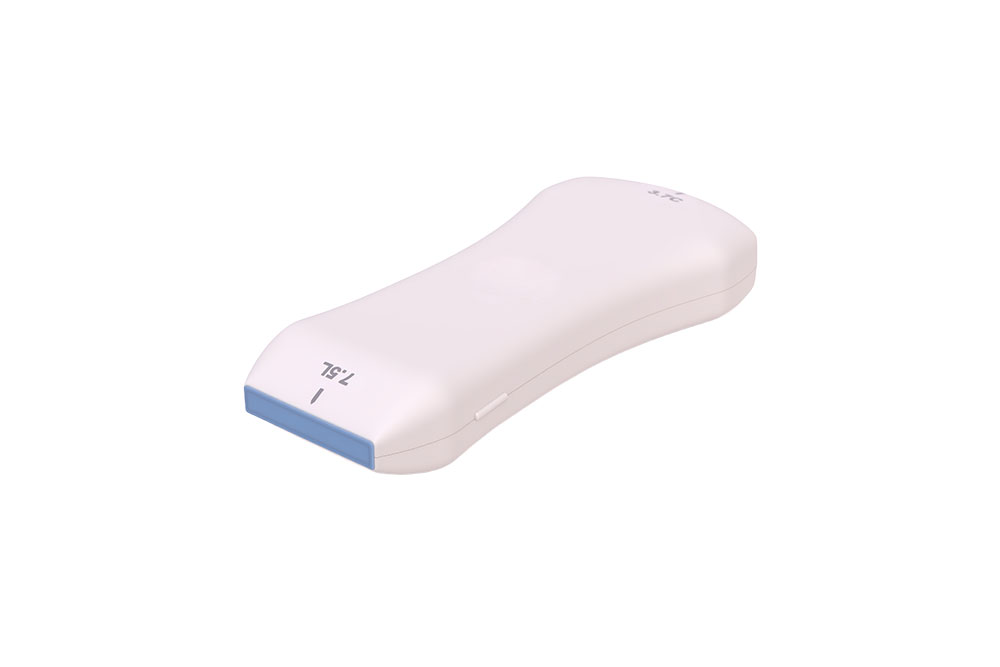

External ultrasound imaging probe (handheld ultrasound)

  • Ultra-wideband: Ultra-wideband design provides higher signal-to-noise ratio and clearer images
  • High sensitivity: higher image resolution and penetration
  • Core components are self-produced and self-developed: All core components and processes are self-developed and self-produced, which is more stable
  • High reliability: Mature process technology and quality control bring higher reliability
Learn More

Details

Details

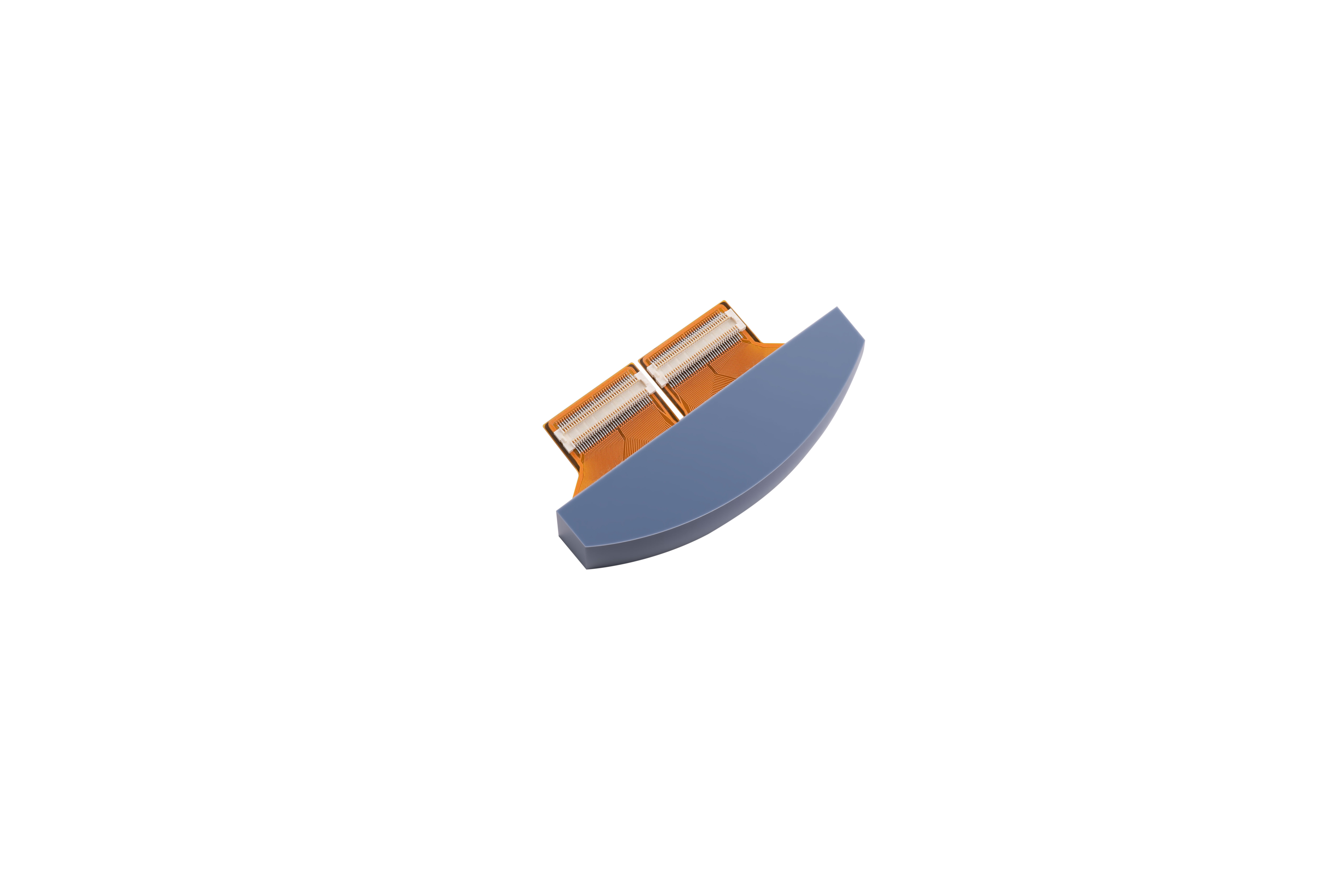

Convex array

Number of array elements

radian

Center frequency (MHz)

Frequency (range)

(MHz)

-6dB bandwidth

Sensitivity

Array element spacing (mm)

Focus depth (mm)

Maximum detection depth (mm)

3C

(One-side outlet)

128

R60

3

1.5-4.6

>75%

>-50dB

0.49

(Before bending)

80

200

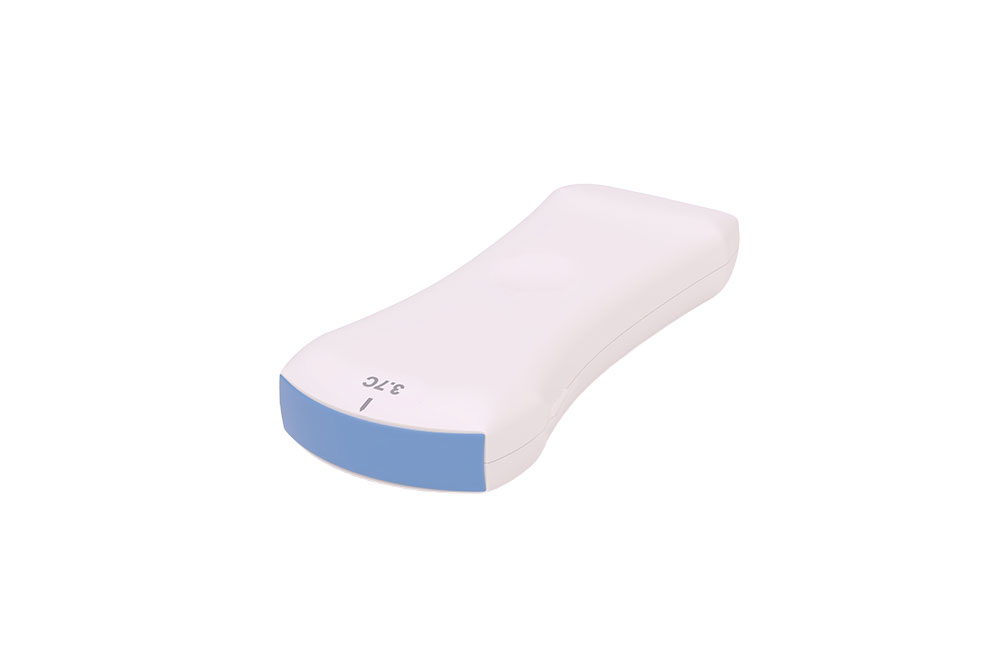

3.7C

(One-side outlet)

128

R60

3.7

1.7-5.5

>75%

>-50dB

0.49

(Before bending)

80

200

3.7CB

(Double-side outlet)

128

R60

3.7

1.7-5.5

>75%

>-50dB

0.49

(Before bending)

80

200

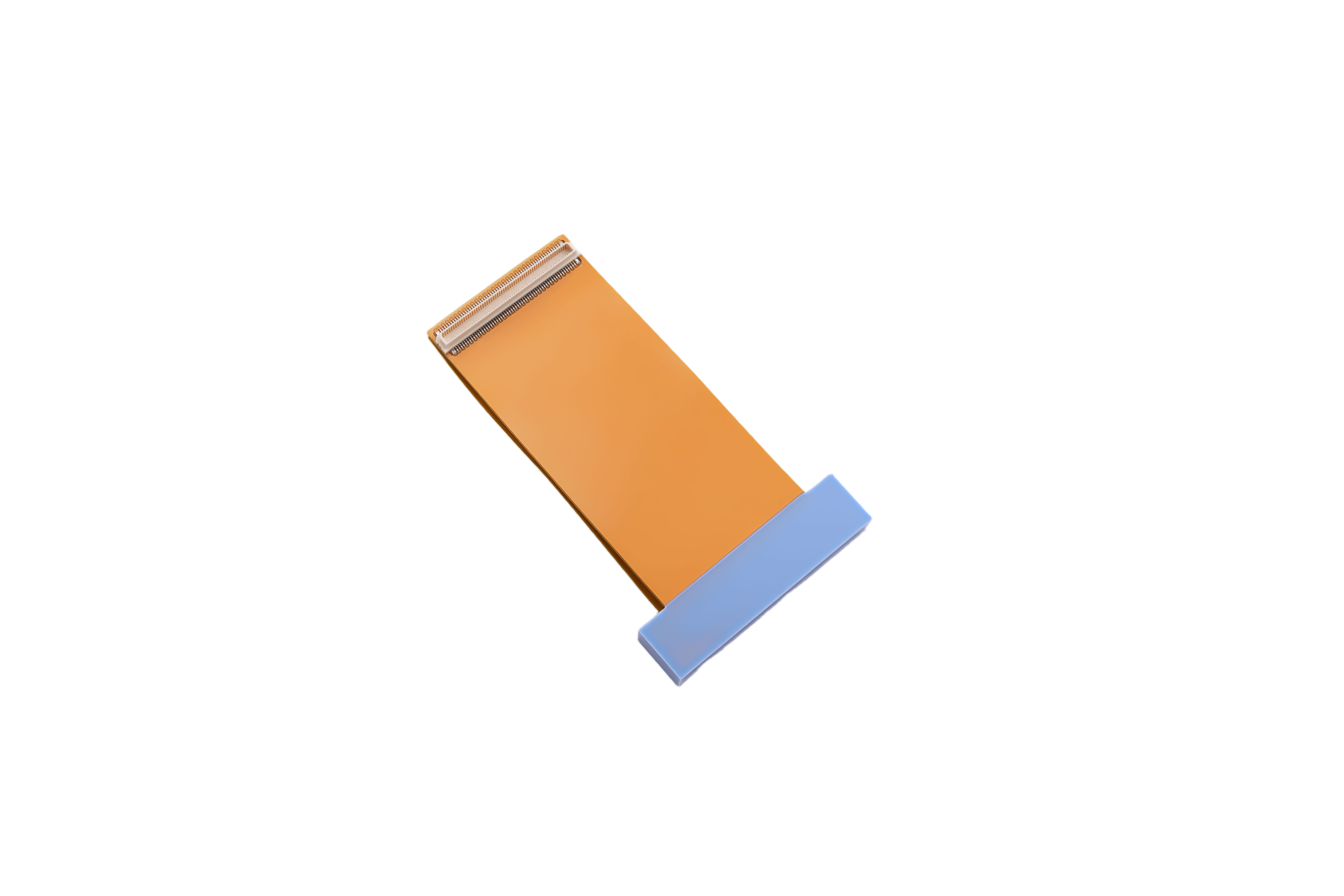

Linear Array

Number of array elements

width

Center frequency (MHz)

Frequency (range)

(MHz)

-6dB bandwidth

Sensitivity

Array element spacing (mm)

Focus depth (mm)

Maximum detection depth (mm)

7.5L

(One-side outlet)

128

L38.4

7.5

3-11

>80%

>-55dB

0.3

40

80

7.5 lb

(Double-side outlet)

128

L38.4

7.5

3-11

>80%

>-55dB

0.3

40

80

10L

(One-side outlet)

128

L38.4

10

6-15

>80%

>-60dB

0.3

20

70
