Interventional Imaging Catheter & Total Solution

Applicable to cardiac intracavity ultrasound (ICE), the gastrointestinal tract, respiratory tract, orthopedics, urology, reproductive medicine, abdominal surgery, and neurological surgical robots for minimally invasive interventions. It can also be integrated with and adapted to multiple minimally invasive endoscopic devices, including gastrointestinal, respiratory, urological, gynecological, orthopedic, and ENT endoscopes.
  • Core components fully developed and manufactured in-house.
  • High sensitivity: -65 dB.
  • -6 dB frequency bandwidth: 60%.
  • Superior consistency across transducer elements.
  • Mature and reliable product solutions.
  • 100% domestic production.
Manual Learn More

Details

Details

Advantages

  • Customizable for diverse clinical applications.

  • Detects weak acoustic signals with high precision.

  • Rich imaging information with balanced resolution and penetration.

  • Excellent image uniformity.

  • Flexible customization and reliable product upgradability.

  • Extensive medical device registration expertise.

  • Self-controlled supply chain, secured cost and delivery.


Catheter Details

Item

Array

Pitch (mm)

Diameter (mm)

Center Freq. (MHz)

Bandwidth

10F

64

0.12

3.33

7

60%

8F

64

0.11

2.67

7/10

60%

6F

48

0.10

2

7/10

50%


Host Details

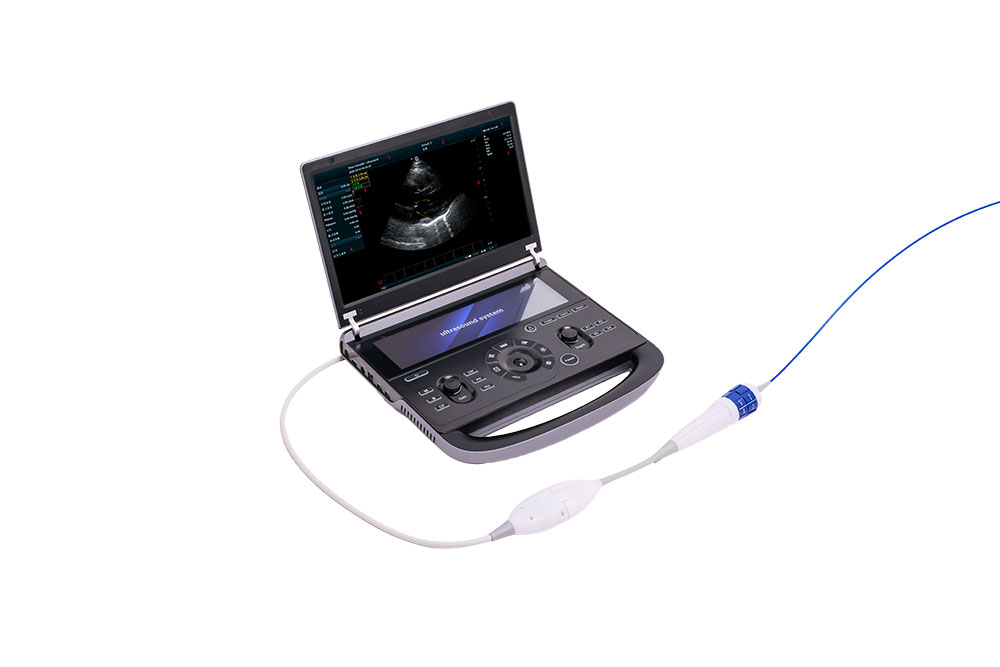

Portable Ultrasound Host

Item

Dimension (mm)

Physical Channel

Screen

Mode

YS-i20

376 × 335.3 × 51.5

64

15.6" LCD Screen
12.6" Touch LCD Screen

B/M/PW/CW/CF/PD/
DPDI Mode

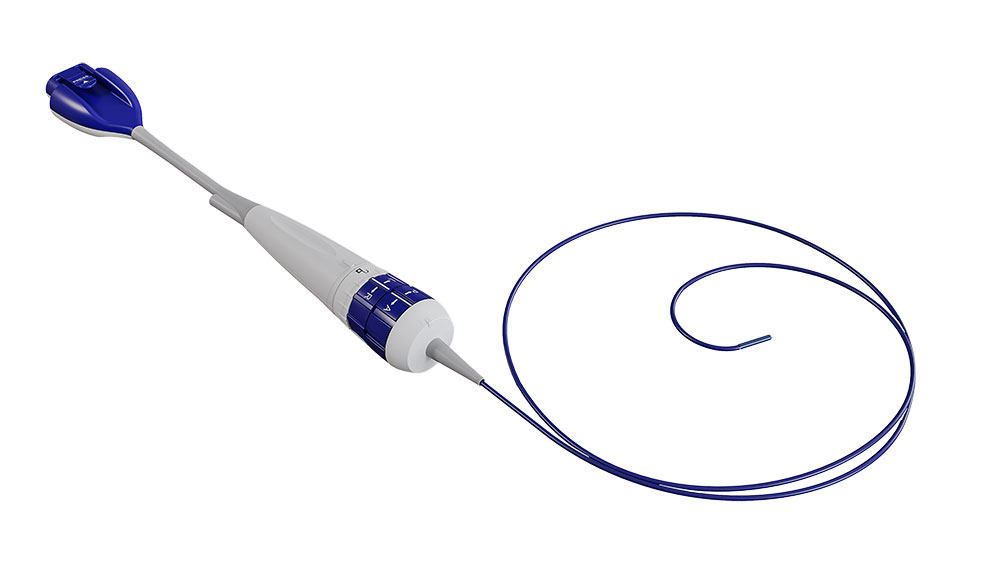

Disposable Intracardiac Ultrasound Imaging Catheter

Item

φ (F)

Catheter Length (cm)

Steering Angle

Probe Type

10F

10

90

180°

64-Element Phased Array

8F

8

90

180°

64-Element Phased Array

6F

6

90

/

48-Element Phased Array
