Details
Probe Details
Model |
Type |
Elements |
Width/Radius |
Center Freq. (MHz) |
Freq. Range (MHz) |
-6 dB BW |
Pitch (mm) |
Focal Depth (mm) |
Max. Depth (mm) |

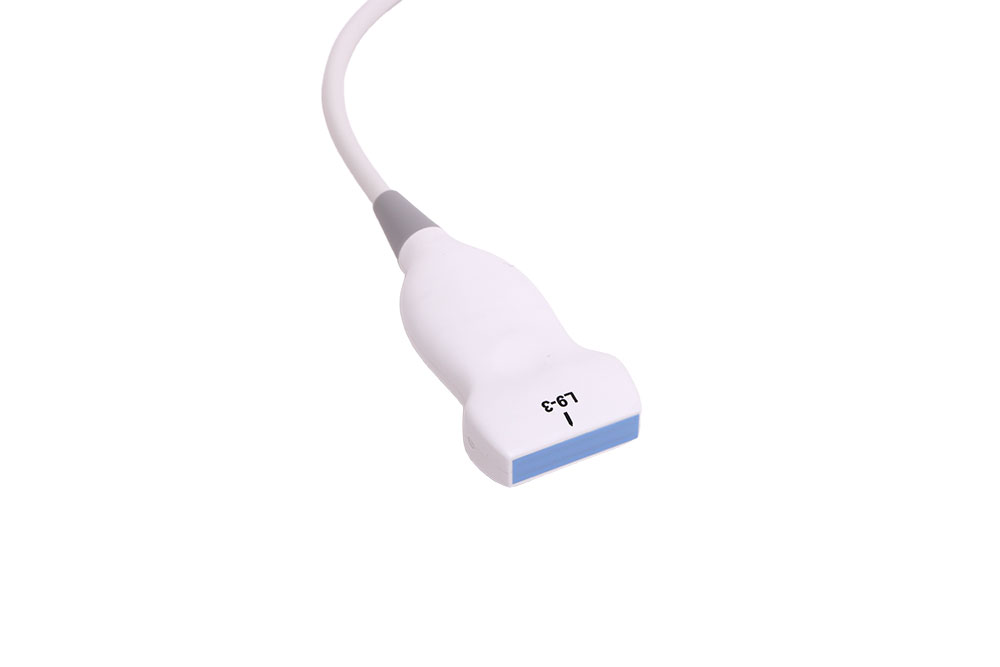

L9-3 |
Linear |
128 |
L38.4 |
6 |
3-9 |
>80% |
0.3 |
40 |
100 |

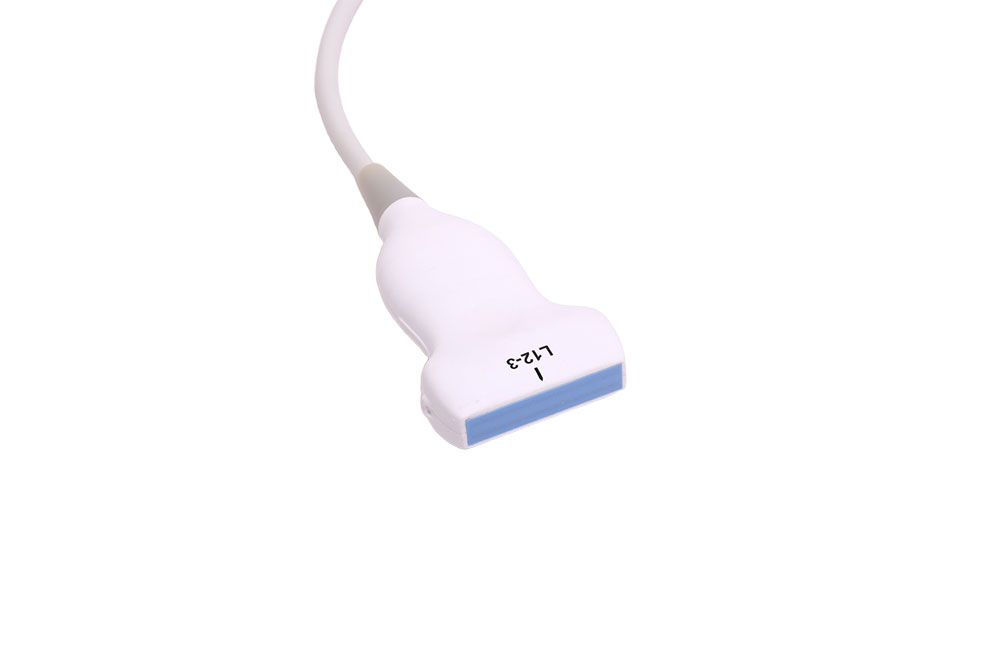

L12-3 |
Linear |
192 |
L48 |
8 |
3-12 |
>80% |
0.25 |
30 |
80 |
L15-6 |
Linear |
192 |
L38.4 |
10.5 |
6-15 |
>80% |
0.2 |
20 |
70 |
L18-5 |
Linear |
192 |
L38.4 |
12 |
5-18 |
>80% |
0.2 |
15 |
50 |
L20-8 |
Linear |
192 |
L20 |
15 |
8-20 |
>80% |
0.1 |
10 |
30 |
SL25-10 |
Linear |
192 |
L20 |
18 |
10-25 |
>80% |
0.1 |
6 |
20 |

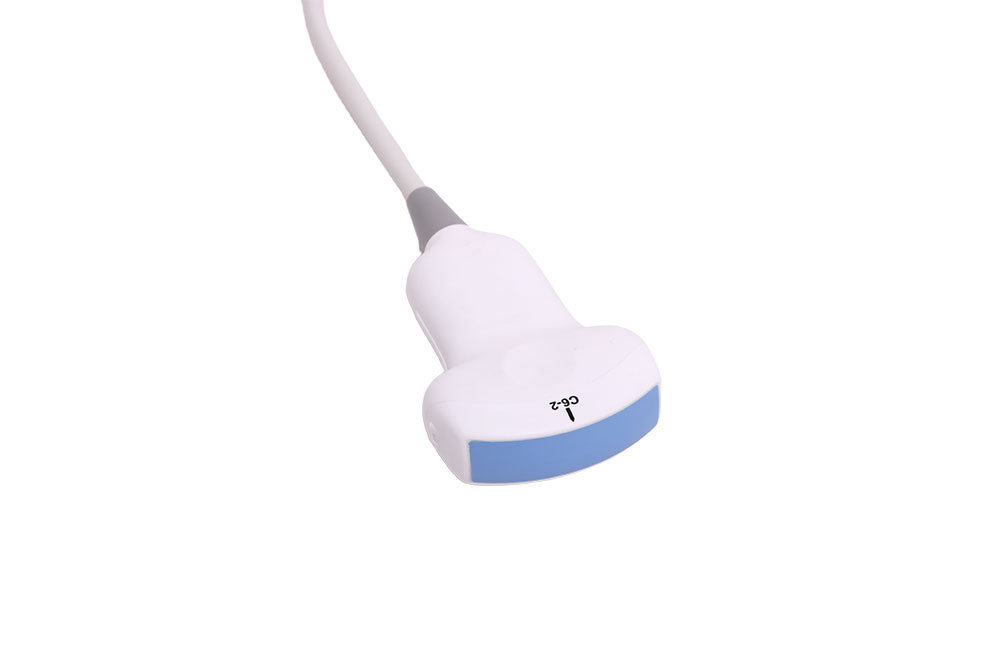

C6-2 |
Convex |
128 |
R60 |
2.9 |
1.5-4.6 |
>75% |
0.46 |
60 |
200 |

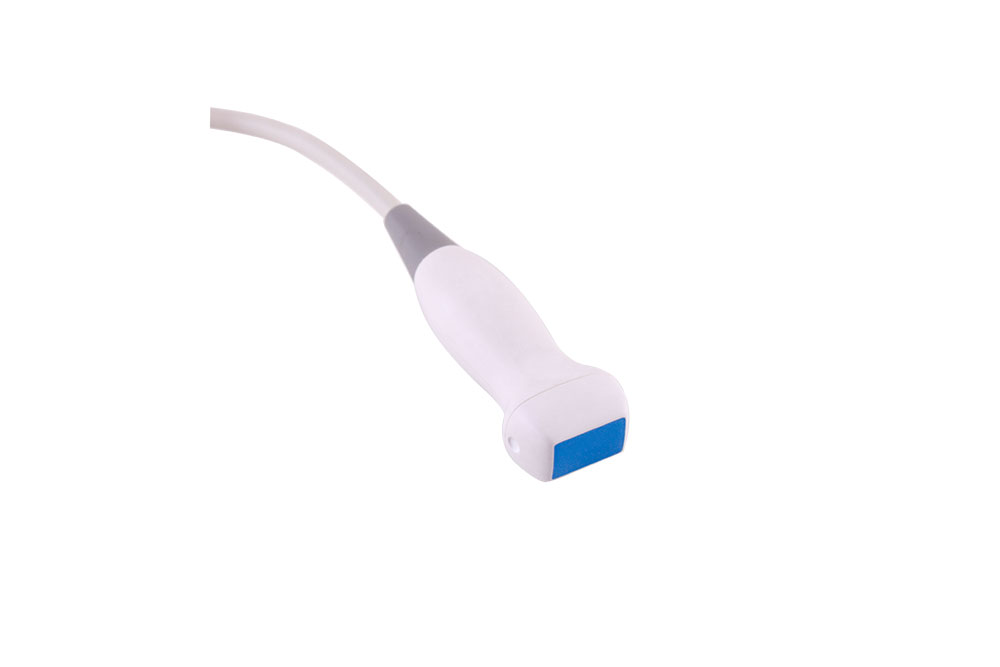

SS5-1 (Phased) |
Phased |
80 |
L20 |
3 |
2-5 |
>85% |
0.25 |
55 |
160 |
Probe Parameters
Probe Type |
Applications |
Special Functions |
Linear Array |
Small organs (breast, thyroid), vessels, musculoskeletal nerves, intraoperative guidance, skin |
Wide field of view and deep penetration for mid-to-deep tissue imaging, as well as superficial vessels and fascia scanning |
Convex Array |
Abdomen, obstetrics and gynecology, urology, fetal / obstetric examinations |
High-resolution imaging and support for micron-level structure identification |
Phased Array |
Cardiac examinations, cardiac function evaluation, hemodynamic analysis |
Electronic sector scanning for narrow acoustic windows and multi-angle dynamic imaging |
Host Details
Host Parameters
Item |
Dimension (mm) |
Physical Channel |
Screen |
Mode |
YS-i20 |
376 × 335.3 × 51.5 |
64 |
15.6" LCD Screen |
B/M/PW/CW/CF/PD/ |
